OpenCV Python Tutorial: Computer Vision With OpenCV In Python

OpenCV Python Tutorial

In this OpenCV Python Tutorial weblog, we can be overlaying numerous elements of Computer Vision the usage of OpenCV in Python. OpenCV has been a important component inside the development of software for a long time. Learning OpenCV is a superb asset to the developer to enhance factors of coding and additionally allows in building a software program development career!

We can be sorting out the following ideas:

What is Computer Vision?
How a computer reads an image?
What is OpenCV?
Basics of OpenCV
Image Detection using OpenCV
Motion Detector the usage of OpenCV

What Is Computer Vision?

To simplify the answer to this – Let us consider a state of affairs.

We all use Facebook, correct? Let us say you and your pals went on a vacation and also you clicked loads of pics and also you need to add them on Facebook and you probably did. But now, wouldn’t it take a lot time just to discover your pals faces and tag them in every and each picture? Well, Facebook is intelligent enough to clearly tag human beings for you.

So, how do you suspect the automobile tag function works? In simple phrases, it really works on pc imaginative and prescient.

Computer Vision is an interdisciplinary discipline that offers with how computers can be made to advantage a excessive-stage know-how from digital pics or films.

The concept here is to automate tasks that the human visible structures can do. So, a laptop need to be capable of apprehend items including that of a face of a man or women or a lamppost or maybe a statue.

How Does A Computer Read An Image?

Consider the under photo:

We can parent out that it's far an photo of the New York Skyline. But, can a computer locate this out all on its very own? The answer is no!

The computer reads any photograph as more than a few values among 0 and 255.

For any colour photo, there are 3 number one channels – Red, green and blue. How it works is pretty simple.

A matrix is shaped for each number one shade and later those matrices combine to offer a Pixel cost for the character R, G, B colours.

Each element of the matrices offer statistics relating the depth of brightness of the pixel.

Consider the following image:

As proven, the scale of the picture right here can be calculated as B x A x three.

Note: For a black-white photo, there is simplest one unmarried channel.

Next up in this OpenCV Python Tutorial blog, allow us to take a look at what OpenCV clearly is.

What Is OpenCV?

OpenCV is a Python library that's designed to solve computer imaginative and prescient problems. OpenCV turned into firstly developed in 1999 through Intel but later it become supported by way of Willow Garage.

OpenCV helps a huge style of programming languages consisting of C++, Python, Java and so on. Support for multiple structures including Windows, Linux, and MacOS.

OpenCV Python is not anything but a wrapper class for the original C++ library for use with Python. Using this, all of the OpenCV array systems receives converted to/from NumPy arrays.

This makes it less complicated to integrate it with different libraries which use NumPy. For instance, libraries such as SciPy and Matplotlib.

Next up in this OpenCV Python Tutorial weblog, allow us to study a number of the primary operations that we will perform with OpenCV.

Basic Operations With OpenCV?

Let us study various concepts ranging from loading pictures to resizing them and so on.

Loading an image using OpenCV:

Import cv2

# colored Image

Img = cv2.imread (“Penguins.jpg”,1)

# Black and White (gray scale)

Img_1 = cv2.imread (“Penguins.jpg”,0)

As visible within the above piece of code, the first requirement is to import the OpenCV module.

Later we can examine the photograph the use of imread module. The 1 inside the parameters denotes that it is a color photo. If the parameter was zero as opposed to 1, it would mean that the photo being imported is a black and white image. The call of the image right here is ‘Penguins’. Pretty honest, proper?

Image Shape/Resolution:

We can make use of the shape sub-feature to print out the shape of the photograph. Check out the beneath image:

Import cv2

# Black and White (gray scale)

Img = cv2.imread (“Penguins.jpg”,0)

Print(img.shape)

By shape of the picture, we suggest the shape of the NumPy array. As you notice from executing the code, the matrix includes 768 rows and 1024 columns.

Displaying the photograph:

Displaying an photo the use of OpenCV is pretty easy and straightforward. Consider the under photo:

import cv2

# Black and White (gray scale)

Img = cv2.imread (“Penguins.jpg”,0)

cv2.imshow(“Penguins”, img)

cv2.waitKey(0)

# cv2.waitKey(2000)

cv2.destroyAllWindows()

As you could see, we first import the photograph the usage of imread. We require a window output to show the pix, right?

We use the imshow characteristic to show the photo by means of commencing a window. There are 2 parameters to the imshow characteristic that's the call of the window and the image object to be displayed.

Later, we look ahead to a user event. WaitKey makes the window static until the consumer presses a key. The parameter exceeded to it is the time in milliseconds.

And ultimately, we use destroyAllWindows to shut the window primarily based on the waitForKey parameter.

Resizing the photograph:

Similarly, resizing an photo may be very clean. Here’s some other code snippet:

import cv2

# Black and White (gray scale)

img = cv2.imread (“Penguins.jpg”,0)

resized_image = cv2.resize(img, (650,500))

cv2.imshow(“Penguins”, resized_image)

cv2.waitKey(0)

cv2.destroyAllWindows()

Here, resize feature is used to resize an picture to the desired form. The parameter here is the form of the brand new resized image.

Later, do notice that the image item modifications from img to resized_image, because of the photograph object adjustments now.

Rest of the code is quite easy to the preceding one, correct?

I am sure you guys are curious to study the penguins, proper? This is the photo we had been seeking to output all this whilst!

There is any other manner to skip the parameters to the resize characteristic. Check out the subsequent representation:

1	`Resized_image` `=` `cv2.resize(img,` `int(img.shape[1]/2),` `int(img.shape[0]/2)))`

Here, we get the new photograph shape to be half of that of the authentic picture.

Next up on this OpenCV Python Tutorial weblog, let us look at how we carry out face detection the usage of OpenCV.

Face Detection Using OpenCV

This appears complex in the beginning however it's far very clean. Let me walk you thru the complete procedure and you'll experience the same.

Step 1: Considering our prerequisites, we are able to require an picture, to start with. Later we want to create a cascade classifier a good way to sooner or later supply us the capabilities of the face.

Step 2: This step includes utilizing OpenCV with a purpose to read the image and the features document. So at this factor, there are NumPy arrays on the number one records points.

All we want to do is to search for the row and column values of the face NumPy ndarray. This is the array with the face rectangle coordinates.

Step 3: This very last step entails showing the image with the square face container.

Check out the subsequent photo, here I actually have summarized the three steps inside the shape of an photo for easier readability:

Pretty straightforward, correct?

First, we create a CascadeClassifier item to extract the capabilities of the face as explained earlier. The path to the XML file which includes the face capabilities is the parameter right here.

The subsequent step would be to study an photo with a face on it and convert it into a black and white photo the usage of COLOR_BGR2GREY. Followed by this, we search for the coordinates for the image. This is executed the usage of detectMultiScale.

What coordinates, you ask? It’s the coordinates for the face rectangle. The scaleFactor is used to decrease the form price through five% until the face is determined. So, on the complete – Smaller the cost, extra is the accuracy.

Finally, the face is printed at the window.

Adding the rectangular face box:

This good judgment is very simple – As simple as using a for loop statement. Check out the subsequent image

We outline the approach to create a rectangle the use of cv2.Rectangle by using passing parameters inclusive of the image object, RGB values of the box outline and the width of the rectangle.

Let us take a look at out the whole code for face detection:

import cv2

# Create a CascadeClassifier Object
face_cascade = cv2.CascadeClassifier("haarcascade_frontalface_default.xml")

# Reading the image as it is
img = cv2.imread("photo.jpg")

# Reading the image as gray scale image
gray_img = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)

# Search the co-ordintes of the image
faces = face_cascade.detectMultiScale(gray_img, scaleFactor = 1.05,
                                      minNeighbors=5)
for x,y,w,h in faces:
    img = cv2.rectangle(img, (x,y), (x+w,y+h),(0,255,0),3)

resized = cv2.resize(img, (int(img.shape[1]/7),int(img.shape[0]/7)))

cv2.imshow("Gray", resized)

cv2.waitKey(0)

cv2.destroyAllWindows()

Next up in this OpenCV Python Tutorial blog, let us observe the way to use OpenCV to seize video with the pc webcam.

Capturing Video Using OpenCV

Capturing motion pictures the usage of OpenCV is pretty simple as nicely. The following loop will come up with a better idea. Check it out:

The pictures are examine one-by using-one and therefore motion pictures are produced due to fast processing of frames which makes the person photos pass.

Capturing Video:

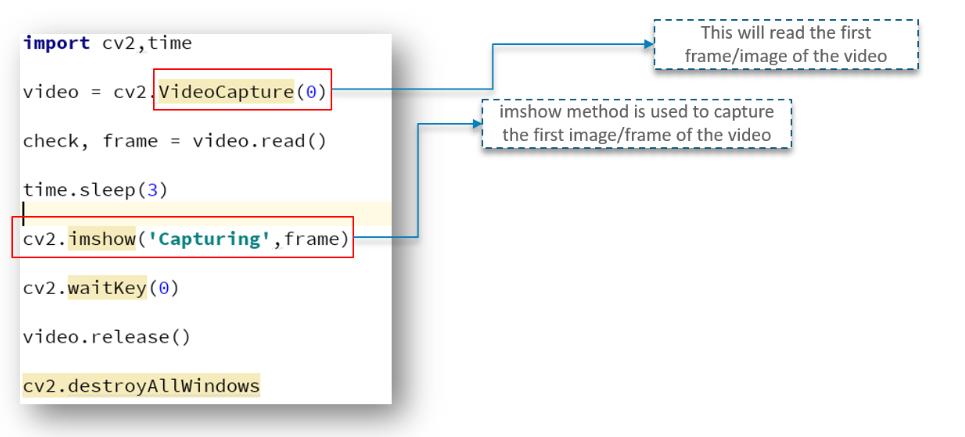

Check out the following photo:

First, we import the OpenCV library as standard. Next, we've a way referred to as VideoCapture that's used to create the VideoCapture item. This approach is used to cause the digital camera on the user’s gadget. The parameter to this feature denotes if the program need to make use of the integrated digicam or an upload-on digital camera. ‘0’ denotes the built-in camera in this situation.

And ultimately, the discharge approach is used to release the digicam in a few milliseconds.

When you go ahead and sort in and attempt to execute the above code, you'll observe that the digicam mild switches on for a break up 2d and turns off later. Why does this take place?

This takes place due to the fact there is no time postpone to maintain the camera purposeful.

Looking on the above code, we've got a brand new line known as time.Sleep(3) – This makes the script to stop for three seconds. Do notice that the parameter surpassed is the time in seconds. So, when the code is accomplished, the webcam will be became on for three seconds.

Adding the window:

Adding a window to reveal the video output is quite simple and may be in comparison to the equal strategies used for pix. However, there's a moderate trade. Check out the following code:

I am pretty certain you could make the maximum feel from the above code apart from one or two lines.

Here, we've defined a NumPy array which we use to symbolize the first picture that the video captures – This is stored in the frame array.

We additionally have check – This is a boolean datatype which returns True if Python is able to get entry to and examine the VideoCapture item.

Check out the output beneath:

As you can check out, we got the output as True and the part of the frame array is outlined.

But we want to examine the primary frame/picture of the video to start, accurate?

To do precisely that, we need to first create a frame item that allows you to examine the snap shots of the VideoCapture item.

So how do we move about shooting the video in preference to the primary picture in OpenCV?

Capturing Video Directly:

In order to seize the video, we will be the usage of the even as loop. While condition could be such that, until except ‘test’ is True. If it's far, then Python will show the frames.

Here’s the code snippet picture:

We make use of the cvtColor function to convert each body into a grey-scale image as explained in advance.

WaitKey(1) will make sure to generate a brand new body after each millisecond of a gap.

It is vital right here which you word that the even as loop is completely in play to help iterate via the frames and in the end display the video.

There is a consumer occasion trigger right here as well. Once the ‘q’ secret's pressed via the user, this system window closes.

OpenCV is quite smooth to comprehend, right? I personally love how appropriate the clarity is and how quickly a amateur can get commenced running with OpenCV.

Next up on this OpenCV Python Tutorial weblog, let us have a look at the way to use a completely thrilling motion detector use case using OpenCV.

Use Case: Motion Detector Using OpenCV

Problem Statement:

You had been approached with the aid of a corporation this is reading human behavior. Your task is to present them a webcam, that could discover the motion or any movement in the front of it. This must go back a graph, this graph have to comprise how long the human/item turned into in the front of the digital camera.

So, now that we have described our trouble statement, we need to construct a solution common sense to approach the trouble in a based way.

Consider the below diagram:

Initially, we save the image in a particular frame.

The next step involves converting the image to a Gaussian blur image. This is done so as to ensure we calculate a palpable difference between the blurred image and the actual image.

At this point, the image is still not an object. We define a threshold to remove blemishes such as shadows and other noises in the image.

Borders for the object are defined later and we add a rectangular box around the object as we discussed earlier on the blog.

Lastly, we calculate the time at which the object appears and exits the frame.

Pretty easy, right?

Here’s the code snippet:

The equal principle follows via here as well. We first import the bundle and create the VideoCapture object to ensure we seize video the usage of the webcam.

The while loop iterates through the character frames of the video. We convert the colour frame to a gray-scale photo and later we convert this grey-scale picture to Gaussian blur.

We need to keep the first image/frame of the video, accurate? We employ the if declaration for this motive alone.

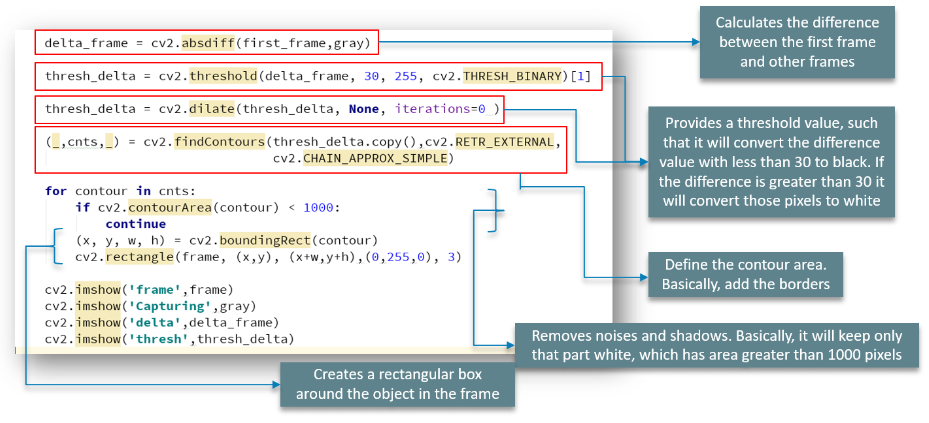

Now, allow us to dive into a little more code:

We employ the absdiff feature to calculate the distinction between the primary going on body and all of the different frames.

The threshold characteristic gives a threshold price, such that it will convert the difference cost with much less than 30 to black. If the difference is greater than 30 it will convert the ones pixels to white coloration. THRESH_BINARY is used for this cause.

Later, we employ the findContours characteristic to outline the contour vicinity for our picture. And we add inside the borders at this level as properly.

The contourArea characteristic, as formerly defined, removes the noises and the shadows. To make it simple, it's going to hold simplest that component white, which has a place greater than a thousand pixels as we’ve described for that.

Later, we create a square field round our object inside the operating frame.

And observed via this is this easy code:

As discussed earlier, the frame changes every 1 millisecond and while the person enters ‘q’, the loop breaks and the window closes.

We’ve protected all the foremost info in this OpenCV Python Tutorial blog. One aspect that stays with our use-case is that we need to calculate the time for which the item changed into in the front of the digital camera.

Calculating the time:

We employ DataFrame to store the time values in the course of which object detection and motion appear inside the frame.

Followed by means of this is VideoCapture characteristic as explained earlier. But here, we've a flag bit we name repute. We use this reputation at the start of the recording to be zero as the object isn't always seen to start with.

We will change the fame flag to 1 while the object is being detected as shown within the above discern. Pretty easy, proper?

We are going to make a listing of the popularity for each scanned frame and later document the date and time using datetime in a listing if and in which a trade occurs.

And we store the time values in a DataFrame as shown inside the above explanatory diagram. We’ll conclude by writing the DataFrame to a CSV report as shown.

Plotting the Motion Detection Graph:

The final step in our use-case to show the results. We are showing the graph which denotes the motion on 2-axes. Consider the beneath code:

To begin with, we import the DataFrame from the motion_detector.Py record.

The next step entails changing time to a readable string layout which may be parsed.

Lastly, the DataFrame of time values is plotted at the browser the use of Bokeh plots.

Output:

Conclusion

I desire this OpenCV Python educational allows you in getting to know all of the basics had to get started with OpenCV using Python.

This may be very on hand while you are attempting to develop packages that require picture reputation and similar principles. Now, you ought to also be capable of use these ideas to develop applications without problems with the help of OpenCV in Python.
